What Causes Premature Hydraulic Hose Failures on Joliet Commercial Vehicles?

A hydraulic hose can look fine at the start of a shift and leave a dump body, liftgate, or tow bed dead in the water hours later. Around Joliet, long operating days and repeated equipment cycles can expose small hose problems faster than many fleets expect.

The problem usually is not one isolated defect. Premature hydraulic hose failures often develop when abrasion, heat, incorrect routing, pressure stress, or installation problems compound over time.

Understanding those failure patterns helps you spot trouble before a hose rupture sidelines the truck and you’re forking out for expensive hydraulic system repairs.

Why Are Hydraulic Hoses Under So Much Stress Around Joliet?

Joliet sits inside one of Will County's most important freight clusters. The Joliet-Elwood intermodal study area is generally bounded by I-80, US 52, Hoff Road, and I-55, with BNSF Railway, Union Pacific Railroad, CenterPoint Properties, trucking groups, and other freight stakeholders involved in regional planning.

That operating environment matters because hydraulic equipment does not wear according to odometer mileage alone. A roll-off truck making repeated container movements, a delivery truck cycling a liftgate, or a tow truck operating its bed several times per shift can put substantial working cycles on its hydraulic system without travelling especially far.

Dump trucks, refuse trucks, recovery vehicles, liftgate-equipped delivery trucks, and utility trucks are particularly dependent on reliable hydraulics. When a hose fails, the truck may still run, but it may no longer be able to perform the job that earns its keep.

How Does Hose Abrasion Cause Early Failure?

Hose abrasion is one of the simplest problems to understand and one of the easiest to underestimate. A hose that repeatedly rubs against a frame rail, bracket, neighbouring hose, or moving equipment can gradually lose its protective outer cover.

Once abrasion reaches the reinforcement, the assembly's condition becomes much more serious. Hose manufacturers specifically account for abrasion resistance because hose-to-metal and hose-to-hose contact can significantly affect service life.

Poor hydraulic hose routing makes the problem worse. Vibration, suspension movement, body articulation, and repeated equipment operation can turn slight contact into constant rubbing, especially on high-utilization trucks moving between Joliet industrial properties, yards, I-80, and I-55.

Can August Heat Shorten Hydraulic Hose Life?

Heat rarely acts alone, but it can speed up deterioration that has already begun. August operating conditions add ambient heat to hot hydraulic oil, engine-compartment temperatures, exhaust heat, and the heat generated during repeated equipment operation.

Excessive hydraulic system heat can harden hose materials and accelerate aging. Hydraulic hose manufacturers therefore specify temperature limits and offer hose constructions designed for elevated-temperature applications.

Pay particular attention to hoses routed near engines, exhaust components, or poorly ventilated equipment compartments. A hose that already has age-related hardening, surface damage, or marginal routing has less room for error when temperatures climb.

Why Do Bend Radius and Hose Length Matter?

A replacement hose needs more than matching ends and roughly the right length. Every hose has a minimum bend radius, and forcing it into a tighter curve can kink the assembly or place excessive stress on its reinforcement and fittings. Parker specifically warns that routing below the minimum bend radius can contribute to premature hose failure.

A hose that is too short creates another problem. Instead of moving naturally as the equipment cycles, it may stretch, pull against fittings, or concentrate stress near the coupling.

Too much hose can also create routing problems. Excess length may sag into moving components or create opportunities for rubbing, so a correctly specified assembly needs enough movement without unnecessary slack.

How Do Pressure Spikes and the Wrong Hose Specification Cause Failures?

Hydraulic hoses must match the application's pressure, temperature, fluid, size, and operating conditions. Installing an assembly simply because it fits between two connection points can be a costly shortcut.

Repeated pressure spikes place additional stress on the hose and its connections. Parker notes that hydraulic systems can experience surges and shocks, while hose selection must account for appropriate working-pressure requirements.

An incorrectly specified hose may therefore fail even when the routing looks acceptable. If replacement hoses repeatedly fail in the same position, the fleet should consider whether the root cause lies in system pressure, application requirements, or installation rather than continuing to replace the same component.

Can Hydraulic Fluid Contamination Damage Hoses?

Dirt, moisture, deteriorated fluid, and other contamination can contribute to wear throughout a hydraulic system. Hydraulic fluid contamination should therefore be considered when a hose failure appears alongside unusual heat, component wear, poor operation, or recurring hydraulic problems.

The goal is not simply to replace the leaking hose and call it a day. Preventive maintenance on heavy-duty equipment is intended to identify developing problems before they become larger failures or create costly downtime.

Contamination can also signal that debris entered the system during an earlier repair. Keeping replacement assemblies and connection points clean helps avoid introducing another problem while fixing the first one.

How Do Hose Fittings and Installation Errors Cause Premature Failure?

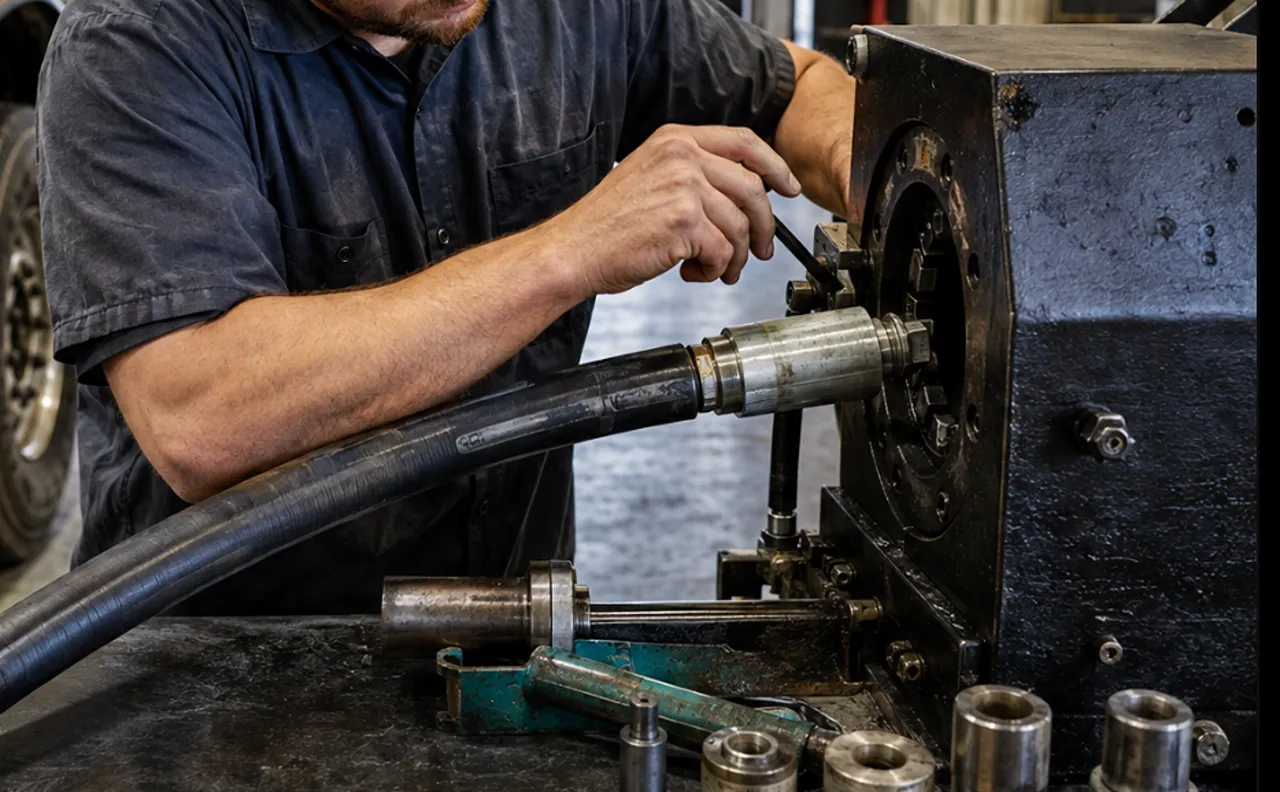

Failures around hose fittings deserve careful attention. Incorrect fittings, improper crimping, unsupported assemblies, or twisting the hose during installation can create stress exactly where the hose needs a secure connection.

Twisting is particularly troublesome because the assembly may look acceptable when stationary. Once pressure and movement enter the picture, however, that torsional stress can shorten its service life; Parker specifically identifies twisting and improper routing as conditions that can contribute to hose failure.

A hurried field repair can get equipment moving, but the replacement still needs the correct hose, fittings, routing, support, and installation technique for the application.

Does Hose Age Matter Even When There Is No Leak?

Yes. A dry hose is not automatically a healthy hose.

Heat exposure, flexing, vibration, weather, and normal aging can change a hose long before hydraulic fluid reaches the ground. Preventive maintenance should therefore focus on condition, routing, and application, not leakage alone. It should identify potential failures before they escalate into breakdowns and extended downtime.

That becomes especially important for Joliet fleets with trucks cycling hydraulic equipment throughout long warehouse, construction, towing, refuse, or intermodal shifts.

What Warning Signs Suggest a Hydraulic Hose Is Failing?

Visible leakage may be a late warning. During inspections, look for:

• Exposed or damaged hose reinforcement
• Cracks, hardening, or blistering
• Wetness around hose fittings
• Bulging sections of hose
• Kinks or an excessively tight bend radius
• Hose abrasion or contact with another component
• Loose or corroded fittings
• Slower-than-normal hydraulic movement
• Unusual hydraulic noise or excessive heat

Catching rubbing, hardening, fitting stress, or routing errors before a rupture can turn an unscheduled breakdown into a planned repair.

How Does Hydraulic Hose Inspection Fit Into Illinois Fleet Maintenance?

Illinois rules prescribe repair and maintenance requirements for commercial motor vehicles and incorporate federal inspection, repair, and maintenance provisions. Illinois State Police also has authority to inspect commercial vehicles in operation and may place vehicles out of service when applicable North American Uniform Out-of-Service Criteria are met.

That does not mean every damaged hydraulic hose automatically creates a DOT violation or out-of-service condition. It does reinforce the broader point: keeping commercial equipment in safe operating condition requires catching defects before they become serious failures.

Reduce the Risk of Premature Hydraulic Hose Failures

Most premature hydraulic hose failures leave clues. Abrasion, poor hydraulic hose routing, excessive hydraulic system heat, incorrect bend radius, pressure spikes, contamination, installation errors, and age can all shorten hose life before an obvious leak appears.

For Joliet commercial fleets, operating hours and hydraulic cycles matter just as much as road mileage. Inspecting assemblies according to their actual duty cycle can help keep high-use equipment productive instead of waiting for the next hose to burst.

If your truck has an abraded hose, leaking fitting, slow hydraulic function, recurring hose problem, or another hydraulic concern, contact our team at C1 Truck Service. Give us a call at 872-777-8710 ot visit our Contact Page.

Frequently Asked Questions

What is the most common cause of premature hydraulic hose failure?

There is no single cause in every application, but abrasion and poor hydraulic hose routing are major concerns. Repeated contact with brackets, frame components, neighbouring hoses, or moving equipment can eventually wear through the protective cover and damage the hose reinforcement.

Can hot weather cause a hydraulic hose to burst?

Hot weather alone does not necessarily cause failure. However, high ambient temperatures can combine with hot hydraulic fluid, nearby engine or exhaust heat, hose age, and repeated cycling to increase hydraulic system heat and accelerate deterioration.

Should a hydraulic hose be replaced if it is not leaking?

Possibly. A hose showing cracking, hardening, blistering, severe hose abrasion, exposed reinforcement, bulging, kinking, or damaged hose fittings may require attention even before fluid begins leaking.

Why does the same hydraulic hose keep failing?

Repeated failures in the same location can point to an unresolved cause such as incorrect bend radius, poor routing, excessive movement, pressure spikes, an improperly specified hose, incorrect installation, or inadequate support. Replacing the hose without correcting the underlying problem can lead to another early failure.

Do hydraulic hoses need preventive inspections on commercial trucks?

Yes. Preventive maintenance helps fleets identify wear, routing problems, heat damage, fitting stress, and other developing concerns before the hydraulic function fails during operation.
